Improving Course Navigation User Experience [Part 2]: Planning UI Copy & Markup

In Part 1 of this recipe, we explored various UX patterns for Course Navigation where one of the central theme was that the Mark Complete (or similar) and Next Lesson actions are subtypes of the same Next Step action in a basic intuitive course model.

For the UI, this means that the Mark Complete button and the Next Lesson button become citizens of the same visual space – the right column (next step) of a two column navigation.

For that to happen, we need to change the markup of the navigation component in the template system.

Default Navigation Templates

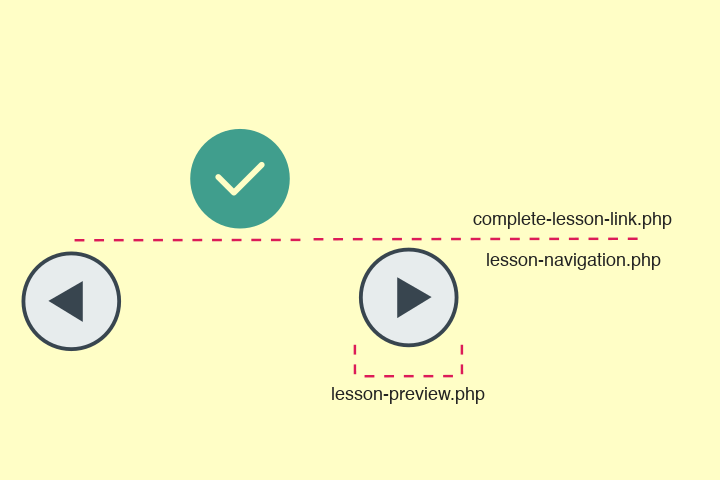

The two templates responsible for the two distinct experiences are:

Within the lesson-navigation.php template, another template is used to generate the Previous and Next Lesson links’ markup:

https://github.com/gocodebox/lifterlms/blob/3.34.4/templates/course/lesson-preview.php

This lesson-preview.php template is also used within the Syllabus component. So, we’ll also need to differentiate between the use of this template in these two contexts, either by splitting it into two separate templates or by modifying the output for each context.

Lesson Navigation Templates

Restructuring Navigation

Now, we’re looking to do something like this:

Which means that whatever the final pattern we build, we’ll have to redo the templates. What we’re looking for is a two-column layout where the left column will always contain only one action but the right column may contain more than one actions.

If you spend some time going through the code in the templates above, you’ll notice that the current markup is structured like this:

  • div.llms-lesson-button-wrapper (complete-lesson-link.php)
    • button (Mark Complete/ Take Quiz/ Start Assignment)
  • nav.llms-course-navigation (lesson-navigation.php)
    • div.llms-course-nav.llms-prev-lesson (lesson-preview.php)
    • div.llms-course-nav.llms-next-lesson (lesson-preview.php)

In this markup, like we’ve discussed in the earlier part, the task completion model and the navigation model have two distinct spaces. What we want to do instead is to rearrange them into a structure similar to this:

  • nav.llms-course-navigation
    • div.llms-course-nav-step.llms-prev-step
      • div.llms-course-nav.llms-prev-lesson
    • div.llms-course-nav-step.llms-next-step
      • div.llms-lesson-button-wrapper.llms-next-action.llms-next-primary-action
      • div.llms-course-nav.llms-next-lesson.llms-next-action.llms-next-secondary-action

We’ve divided the navigation using two new top-level div’s while moving the existing navigation elements a level deeper. In the div for the next action, we’re attempting to differentiate between the primary and secondary actions. This will help us prioritise the primary action visually, irrespective of its order in markup.

At the same time, we don’t want to modify the selectors so that any existing functionality doesn’t break and we achieve what we need with minimum code.

Various States of the Navigation UX

Before going further, let’s take the various permutations in stock. I have listed five states of the navigation

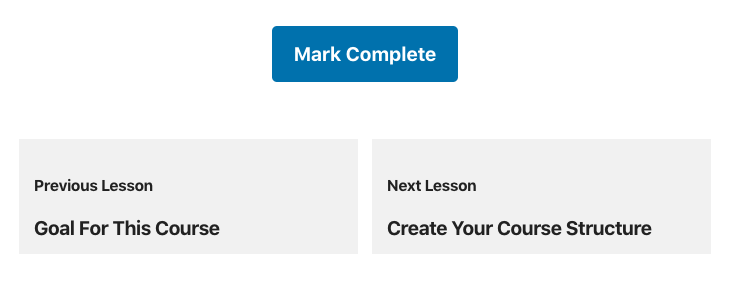

  1. Standard Lesson not yet completed.
    1. with a regular Mark Complete button
    2. with a Take Quiz/Start Assignment button

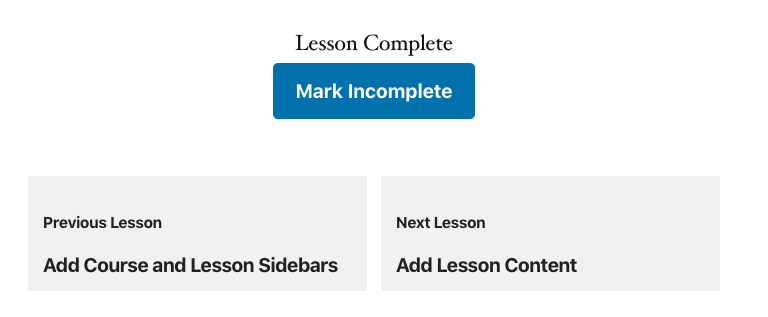

  2. Completed Lesson.
    1. with a Mark Incomplete button

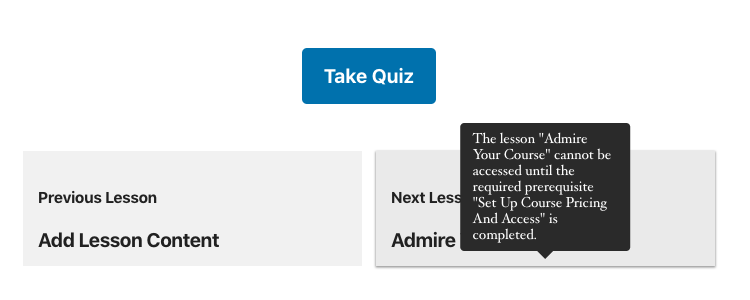

  3. Next Lesson is Restricted (via prerequisite/drip)

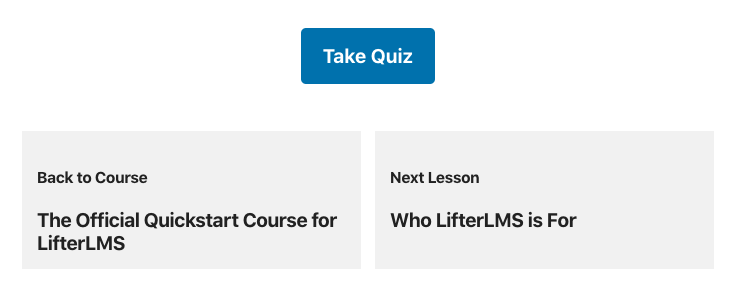

  4. First Lesson (No Previous Lesson, so replaced by Back to Course link)

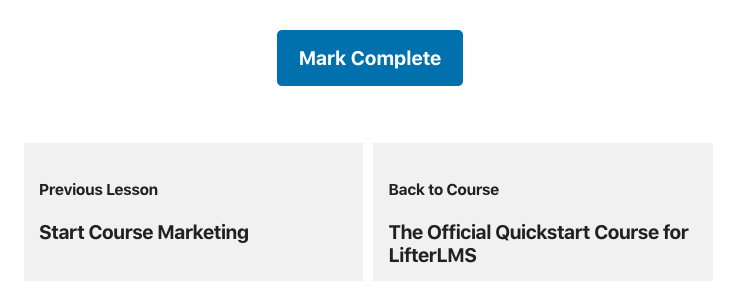

  5. Last Lesson (No Next Lesson, so replaced by Back to Course link)

We’re considering all the variables in this part of the tutorial. In a subsequent part, we’ll look at special cases where some of these variations will either not exist (for eg, Mark Incomplete) or will be implemented differently.

It is also important to note that at this stage, the Take Quiz and the Start Assignment buttons can be considered as the same UI component as the Mark Complete button.

Also, this doesn’t claim to be exhaustive and cover every possibility, just most of them. Even the copy is something you can obviously modify. (If you do see something missing, let us know in the comments and we’ll try and update this series accordingly!)

Explicit Next Step Choice

An important principle of design is providing clear and explicit choice to a user when there are options for an action. This is why you see wordy CTA buttons. For more, see: https://www.smashingmagazine.com/2015/05/designing-for-explicit-choice/

So, we’re going to change the text of the buttons a bit for explicit choice and an interactive human voice.

State 1. Standard Lesson

In situation 1, for example, we could use:

  • Primary Action: Mark Complete & Go to Next Lesson
  • Secondary Action: Next Lesson without completing
State 2. Completed Lesson

Once the lesson is complete (situation 2), we could use:

  • Primary Action: Go to Next Lesson.
  • Secondary Action: Mark Incomplete.

At this point, it is useful to note that, the text Lesson Complete is displayed in place of the Mark Complete button irrespective of whether marking incomplete is enabled. When Mark Incomplete is enabled, there is a button as well as this text.

In another recipe, we’ve discussed ways to move this indicator and make it more obvious. This way, the Lesson Complete text becomes redundant. One less element to worry about in our navigation.

Now that that’s out of our way, let’s try rewording the options for a lesson with a Quiz:

  • Primary Action: Take Quiz to Complete Lesson.
  • Secondary Action: Next Lesson without completing.

For a lesson with an Assignment:

  • Primary Action: Start Assignment to Complete Lesson.
  • Secondary Action: Next Lesson without completing.
State 3. Restricted Next Lesson

When the next lesson is restricted because of a prerequisite:

  • Primary Action: Mark Complete & Go to Next Lesson.
  • Secondary Action (disabled): Next Lesson unavailable before completing {lesson link}.

The primary action may not lead the user to the Next Lesson if it’s prerequisite is a completely different lesson. So, we need to differentiate between scenarios where the current lesson is a prerequisite of the next lesson and where another lesson is a prerequisite instead.

In the former, the copy can stay as it is. In case of the latter, the primary action can’t say Go to Next Lesson, it’d have to just say Mark Complete.

When the next lesson is restricted because of a drip:

  • Primary Action: Mark Complete & Go to Next Lesson.
  • Secondary Action: Next Lesson unavailable before {date}.
State 4. First Lesson

On the Last Lesson:

  • Primary Action: Complete and go back to Course.
  • Secondary Action: none.

On the First Lesson, nothing changes with respect to the next step. Only the Previous Step is a little different.

State 5. Last Lesson

To summarise, here are all the variations we’ve discussed, placed together for clarity and context:

  • Default
    • Primary Action: Mark Complete & Go to Next Lesson
    • Secondary Action: Next Lesson without completing
  • Completed
    • Primary Action: Go to Next Lesson.
    • Secondary Action: Mark Incomplete.
  • With Quiz
    • Primary Action: Take Quiz to Complete Lesson.
    • Secondary Action: Next Lesson without completing.
  • With Assignment
    • Primary Action: Start Assignment to Complete Lesson.
    • Secondary Action: Next Lesson without completing.
  • Prerequisite
    • Primary Action: Mark Complete & Go to Next Lesson.
    • Secondary Action (disabled): Next Lesson unavailable before completing {lesson link}.
  • Drip
    • Primary Action: Mark Complete & Go to Next Lesson.
    • Secondary Action: Next Lesson unavailable before {date}.
  • Last Lesson
    • Primary Action: Mark Complete & Go Back to Course
    • Secondary Action: NA

Now, that we have almost all the pieces in place, we can start building this navigation.

Depending on what model you prefer, you could easily use a bit of CSS to achieve any of these with the same markup guidelines shared at the start.

If you’re a developer, this should be enough to get you started on the code modifications needed to implement these. If you are planning to do so or have already implemented this, share your results with us in the comments.

If you’re looking for copyable code that you’d like to repurpose, part 3 is underway.
